Peek Polyetheretherketone Properties
Zhejiang Zero Engineering Plastics Co., Ltd. is one of the leading manufacturers and suppliers of peek polyetheretherketone properties in China. If you're going to wholesale bulk advanced peek polyetheretherketone properties made in China, welcome to get free sample from our factory. All customized products are with high quality and competitive price.
Products Description
PEEK polyetheretherketone is a high-performance engineering plastic with a wide range of applications in the energy field. PEEK polyetheretherketone has high temperature stability and low coefficient of thermal expansion, allowing it to operate stably for a long time in a high-temperature environment.
This also makes PEEK polyetheretherketone ideal for use in oil, gas, nuclear power and solar energy.
Typical application in Nuclear field
In the field of nuclear power, PEEK polyetheretherketone also plays an important role. The high temperature stability of PEEK polyetheretherketone allows it to withstand high radiation environments in nuclear reactors. At the same time, the high strength and chemical stability of PEEK polyetheretherketone enable the manufacture of high-quality nuclear fuel elements, control rods, and nuclear waste disposal equipment.

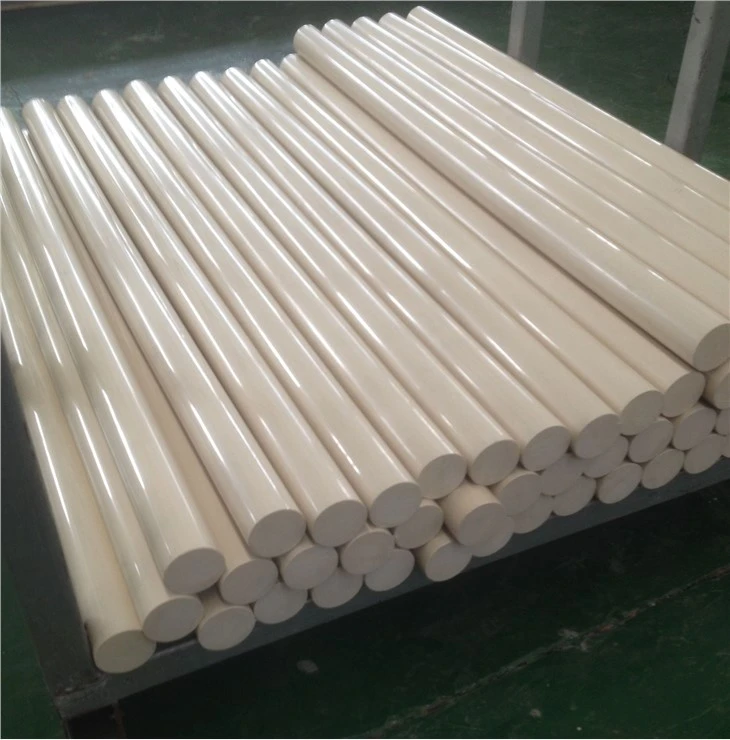

Specification of PEEK Rod produced in Zero Engineering Plastic
| PEEK (PolyEtherEtherKetone) Semimanufacture Trademark: ZECAN@ Unit：mm,g/cm³ | |||||
| Virgin-PEEK ROD | Grade | Diameter | Longth | Gravity | Color |
| Virgin Grade | 6,8,10,12,15 | 1000/3000 | 1.32 |
Natutal Black |
|
| Virgin Grade | 18,20,25,,28,30 | 1000/3000 | 1.32 | ||
| Virgin Grade | 35-85 | 1000/3000 | 1.32 | ||
| Virgin Grade | 90,100,110,120,130,140 | 1000/3000 | 1.32 | ||
| Virgin Grade | 150,160,170,180,200,210,220 | 1000 | 1.32 | ||
Performance Parameter Table of PEEK Rod
| Test Item | Test Method | Result | |
| Tensile test | ISO 527-1:2012&ISO 527-2:2012 | Tensile Strength | 97MPa |
| Elongation at Break | 12.60% | ||
| Flexural Test | ISO 178:2019 Method A | Flexural stress at conventional deflection | 119MPa |
| Maximum flexural stress | 156MPa | ||
| Flexural Modulus | 3364MPa | ||
| Charpy Notched Impact Strength | ISO 179-1:2010 | 3.7KJ/㎡ C(complete destruction) | |
| Rockwell Hardness | ISO 2039-2:1987 | 112 | |
| Specific Gravity | ISO 1183-1:2019 Method A | 1.302 | |
| Water Absorption | ISO 62:2008 Method 1 | 0.06% | |
| Vertical Burning | UL 94-2013 Rev.9-2018 Section 8 | V-0 | |
| Mean Coefficient of Linear Thermal Expansion | ISO 11359-1:2014&ISO 11359-2:1998 Method A | 100~120℃ | 59×10-6K-1 |
| 140~200℃ | 173×10-6K-1 | ||
| Deflection Temperature under Load | ISO 75-1:2020&ISO 75-2:2013 Method A | 181℃ | |
| Melting extrapolated onset temperature, Teim | ISO 11357-3:2018 | 323.7℃ | 325.6℃ |
| Melting peak temperature, Tpm | 339.9℃ | 341.3℃ | |
| Melting extrapolated end temperature, Tefm | 348.3℃ | 347.2℃ | |
